| ชื่อแบรนด์: | Xrido |
| เลขรุ่น: | ปรับแต่งได้ |

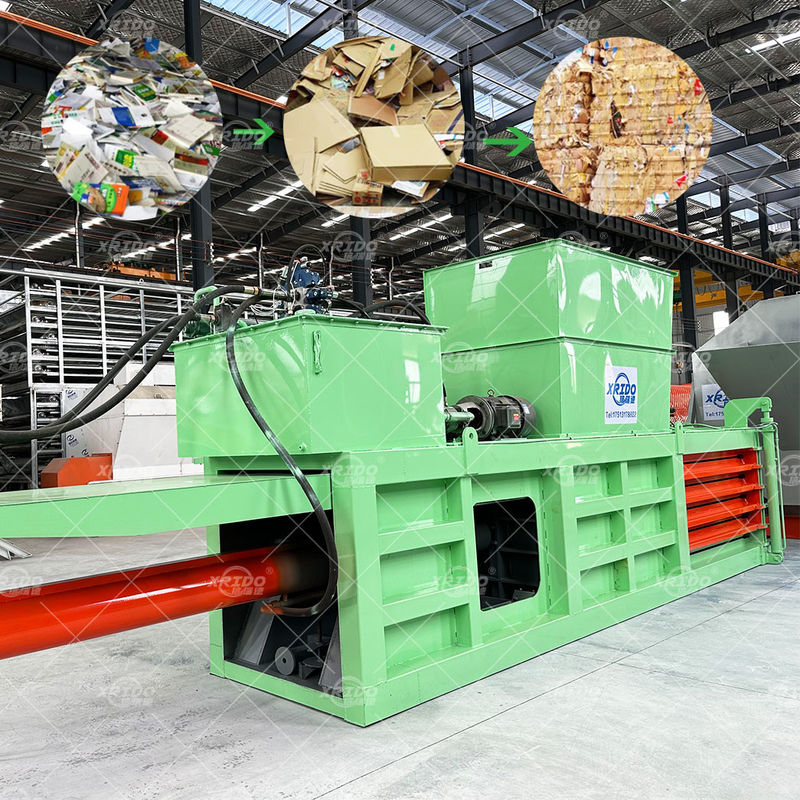

The working principle of the waste plastic baler is divided into three stages: first, the plastic is put into the material box through a conveyor belt or manually, and the pre-pressing device performs preliminary compression; then the main pressure cylinder (pressure is usually 80-300 tons) implements high-pressure compression; finally, the automatic strapping device fixes the formed block with steel wire/plastic belt. Some models integrate crushing function, which can complete plastic crushing processing simultaneously.
Final Products:
|
Product Name
|
Fully Automatic Horizontal Hydraulic Waste Cardboard Press Machine
|
|
|
Product Model
|
XRD-160
|
XRD-120
|
|
Pressure
|
160T
|
120T
|
|
Oil Pump
|
50A38 Double Combination Pump
|
50A35 Double Combination Pump
|
|
Electronic Control System
|
PLC Computer Automatic Degree Infrared Sensor,Object Detection
|
|
|
Inlet Size
|
1100mm*2000mm
|
1100mm* 1600mm
|
|
Outlet Size
|
2000 (Adjustable) *1100*1250mm
|
1800(Adjustable) *1100*900mm
|
|
Bale Density
|
400-500kg/m3
|
400kg/m3
|
|
Capacity
|
8-12T/H
|
6-10T/H
|
|
Power
|
37KW+5KW+4KW
|
30KW+4KW+4KW
|
